箱式-离心风机

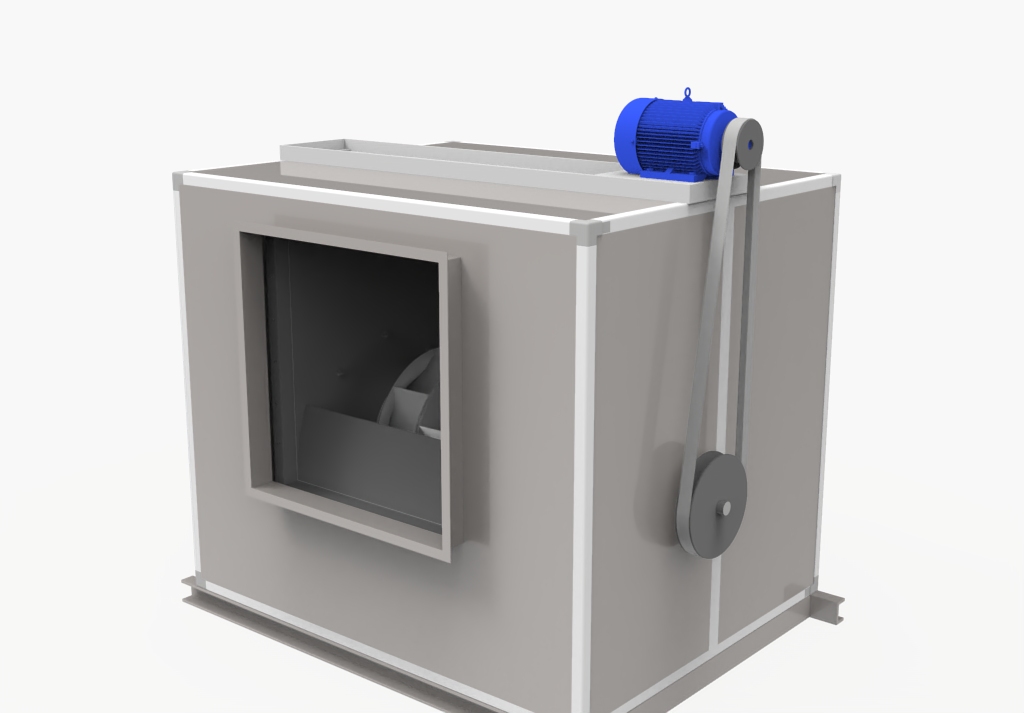

DCF Duct Cabinet Centrifugal Fan

型号: DCF(箱式-离心风机)

风量:1,500~140,000 m³/h

静压:300~1,800Pa

重量:175~600kg

功能: 普通送排风、防爆排风以及消防排烟

特点:

1.叶轮设计经CFD模拟分析,性能稳定,效率高；

2.铝合金框架结构，可拆卸，重量轻，抗锈蚀，寿命长；

3利用降噪理论设计箱体结构，面板标配为镀铝锌板材质；可选消音孔板，能有效降低因气流产生的噪音；

4. 叶轮经过加强，后倾叶轮配置稳固的加强圈，前弯叶轮配置牢固的加强杆 ，确保长期稳定运行；

5.动平衡等级高达G2.5，有效降低震动产生的噪音，保证风机性能特性；

6.多种可选项配置，多种出风方向，适合不同场合不同需求；

7.自带检修门，维护方便；

8.可带过滤段，适用于净化工况需求。

Model:DCF (Duct Cabinet Centrifugal Fan)

Volume:1,500~140,000 m³/h

Static pressure:300~1,800Pa

Weight:175~600kg

Applications:General ventilation, Explosion-proof exhaust and Fire exhaust

 Characteristics:

1.The impeller design is simulated by CFD, the performance is stable and the efficiency is high;

2. Aluminum alloy frame structure is available for disassembly, light weight, corrosion resistance, long service life;

3. We design the structure of the cabinet according to noise reduction theory, aluminum plated sheet for the panel is standard, muffled hole board is optional to effectively reduce the noise caused by the air flow;

4. Impellers are strengthened,the backward inclined impeller is equipped with a solid reinforcement ring, and the forward curved impeller is equipped with a strong reinforcing rod to ensure a long and stable operation;

5.The dynamic balance grade is up to G2.5, which can effectively reduce the noise produced by the vibration, ensuring the performance feature of the fan;

6. Many options are available, a variety of outlet directions are suitable for different requirements;

7. Self-equipped access door, easy maintenance;

8. The band filter section is available for application with purification requirement.
