SCH-M Airfoil Industrial ceiling Fan

产品介绍

Product introduction

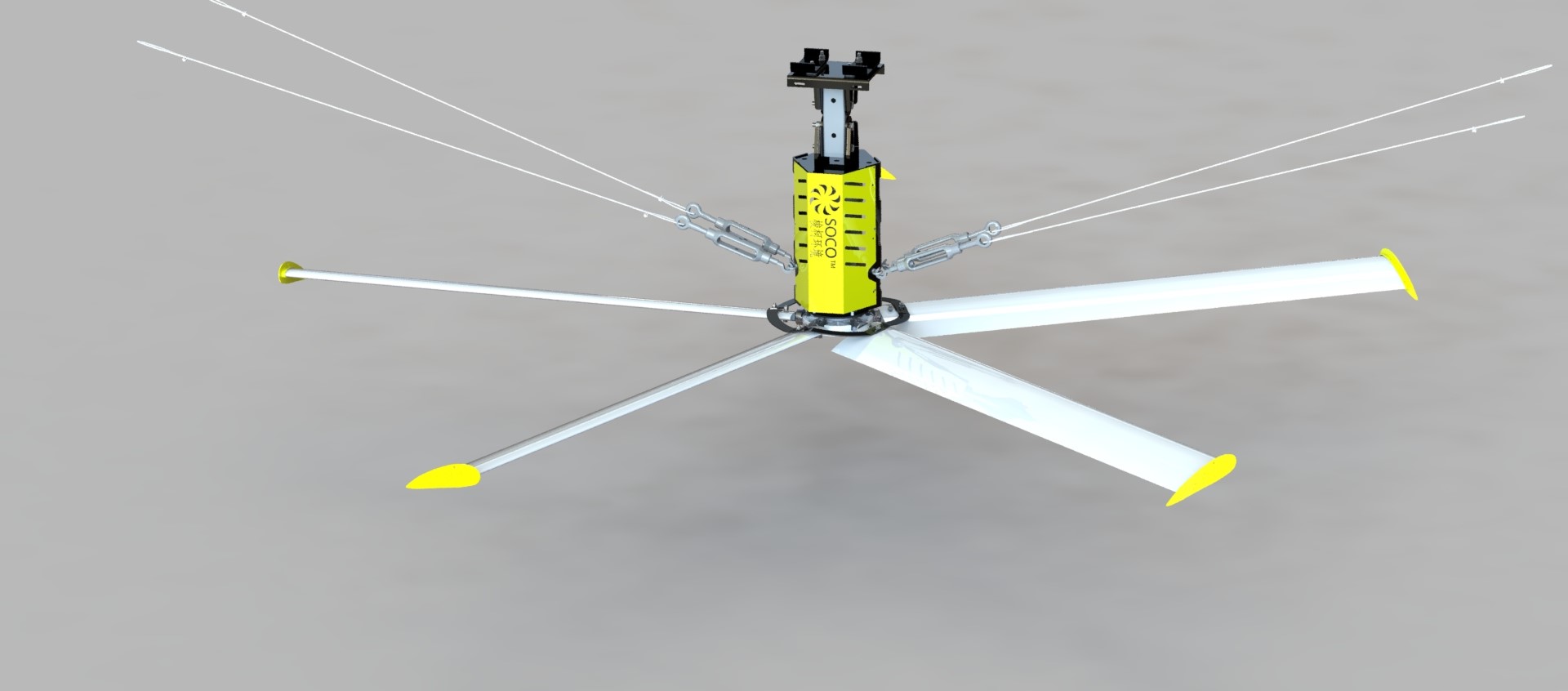

水星系列（Mercury Series）机翼型工业吊扇，超大的叶轮直径,高风量、低转速、低风速运行，推动空气循环，加强空气流动。

Mercury Series of airfoil industrial ceiling fan, with its super-large impeller diameter, high air volume, low rotating speed and low wind speed, promotes air circulation and strengthen air flow.

风扇运行时气流两侧形成水平方向流动，由此产生独特高效的气流层，悄无声息的气流最远可达到风扇中心35m范围。

When the fan is running, the air flows horizontally on both sides, resulting in a unique and efficient air flow layer, and the silent airflow reaches as far as 35m away from the fan center.

超大风扇可在地面形成 1～3 m高度的立体自然微风，仿佛置身于宽阔的湖边，感受清爽的微风阵阵。低转速带来的低噪音使得人员处于长时间的工作环境，也不会产生烦躁情绪。

The super-large fan can form a three-dimensional natural breeze at 1~3 m height on the ground, bringing you the feeling as if you are along a wide lake to enjoy the refreshing breeze. The low rotating speed brings low noise, so that people working in the environment for a long time will have no irritability.

高效节能

Highly efficient and energy-saving

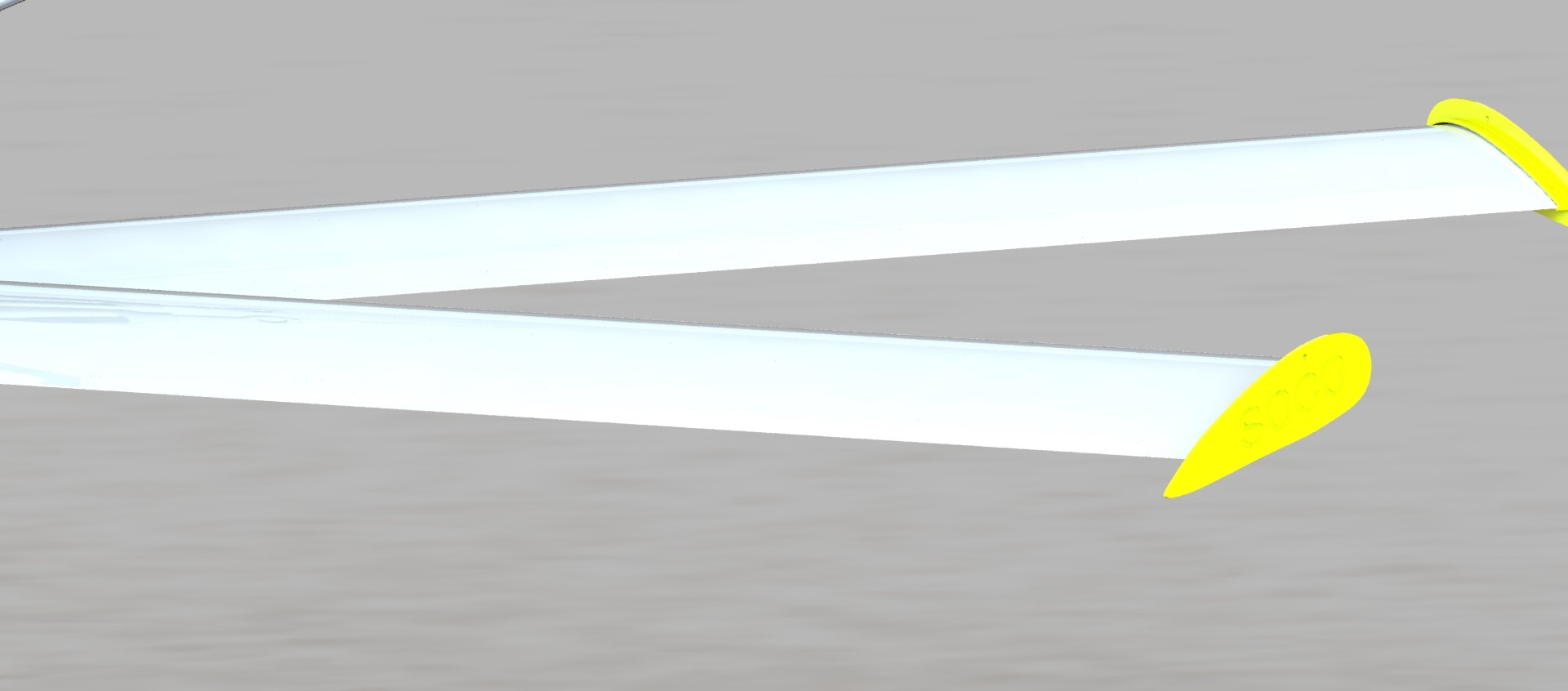

机翼型叶片，低转速，运行电机功率仅为1.5kw。已经在欧美广为使用.。

Airfoil blade, low rotating speed and the motor power is only 1.5KW. It has been widely used in Europe and America.

覆盖面积最高可达1300m2，出风量最大13500（m3/min）

The maximum coverage area is 1200m2, and the maximum air volume is 13500 (m3/min)

优质供应商

Quality suppliers

驱动设备：Drive equipment:

伦茨lenze（上海）传动系统有限公司Lenze (Shanghai) Drive System Co. Ltd
诺德（中国）传动设备有限公司NORD（China）Power Transmission Co. Ltd

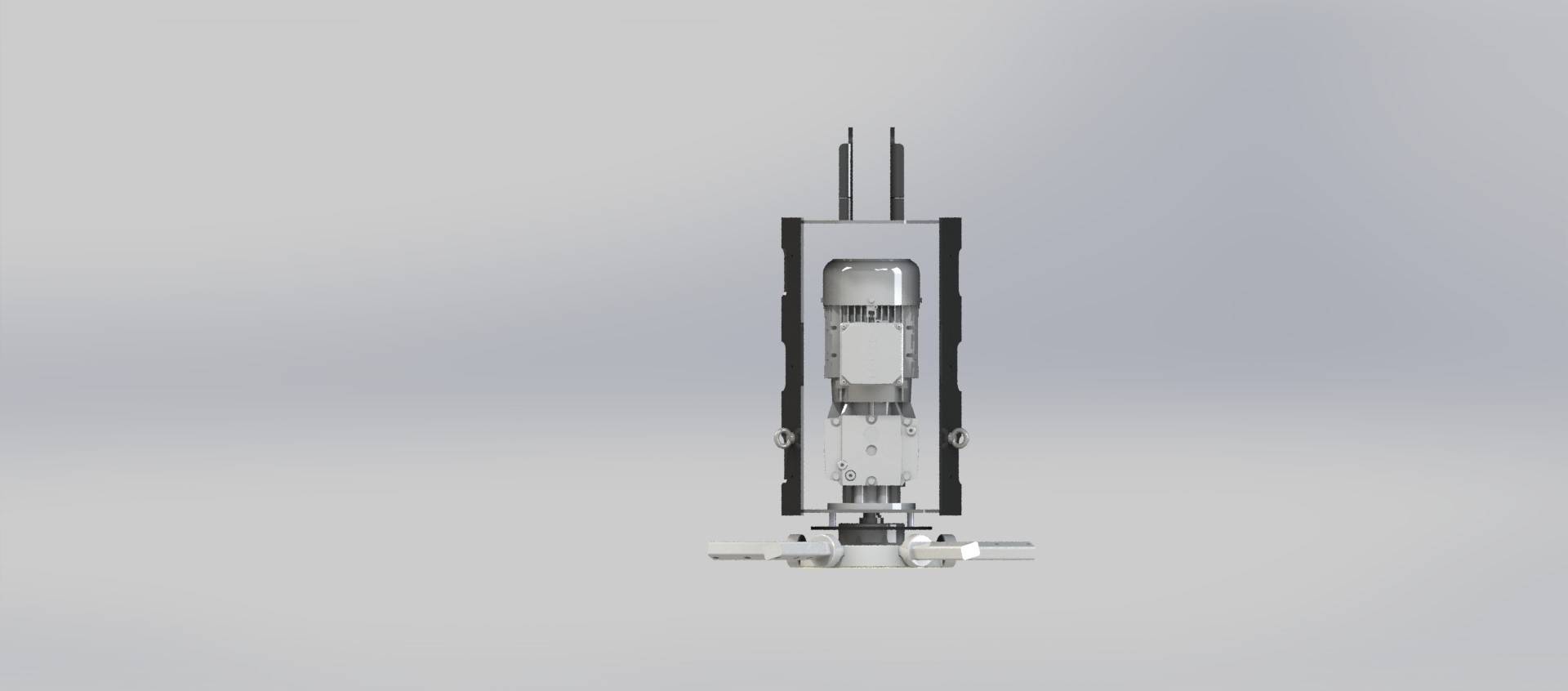

可靠设计理念

ReliableDesignconcept
1、轴端高强度螺栓，带放松措施。

High-strength bolts at the end of the shaft, with relaxation measures.

2、精密型的胀紧套，内侧锥形口连接。

Precision expansion sleeve, with cone mouth connection at inner side;

3、防松托盘，加固，防止事故发生。

Anti-loose tray, reinforced, to prevent accidents;

4、扇叶和扭曲轴，承插式连接方式，过盈配合。

Fan blade and twisted shaft, plug connection, interference fit;

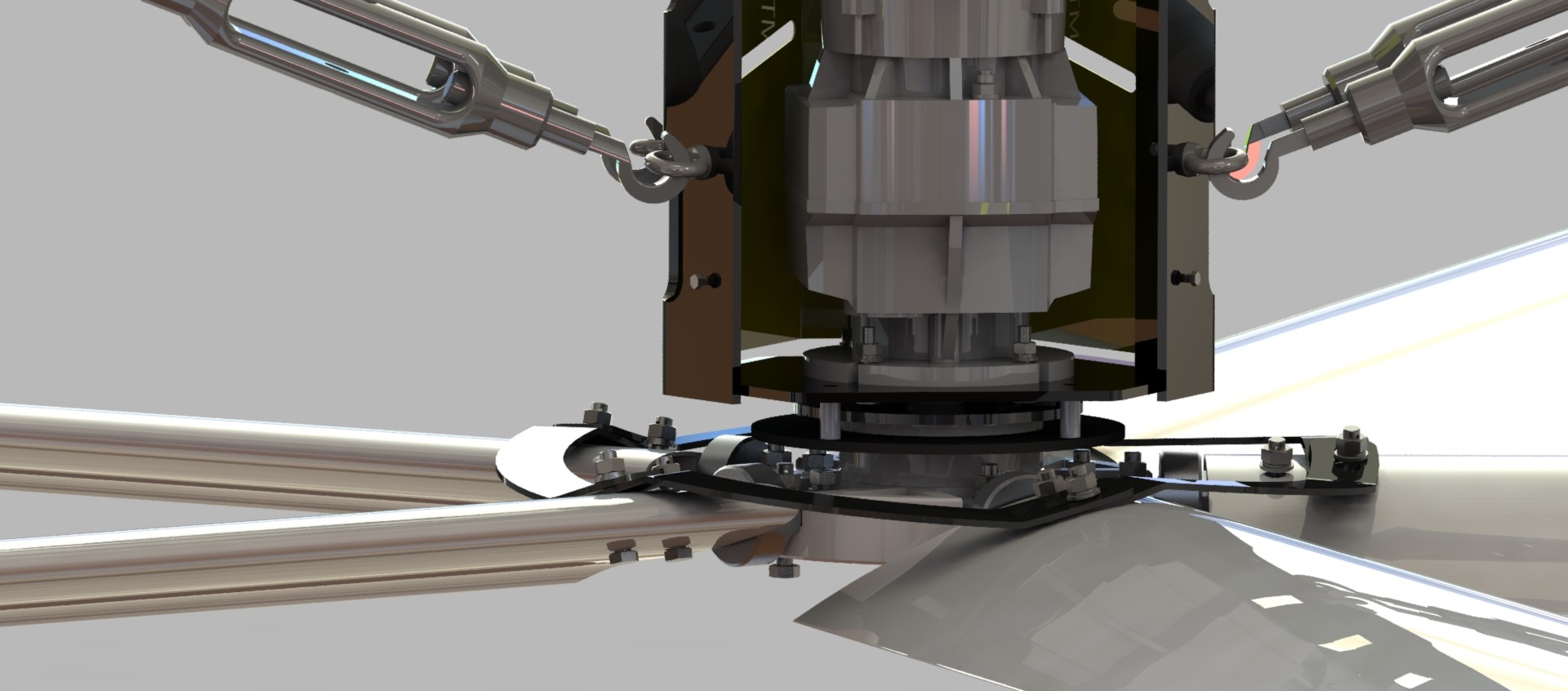

5、联锁铰链，将扇叶用高强度挠性固定脚，连接为一体。

Interlock hinge, connect the fan blades as a whole with high-strength flexible fixed feet;

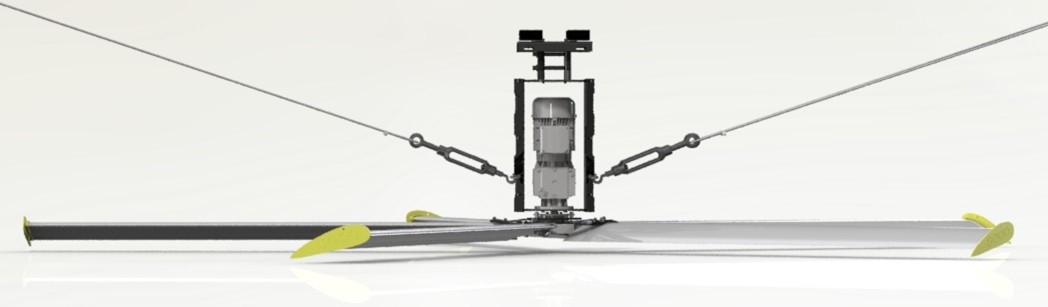

6、钢丝牵引拉索防止风扇受外力影响而晃动

Steel wire traction cable to prevent the fan from the impact of external force and shake

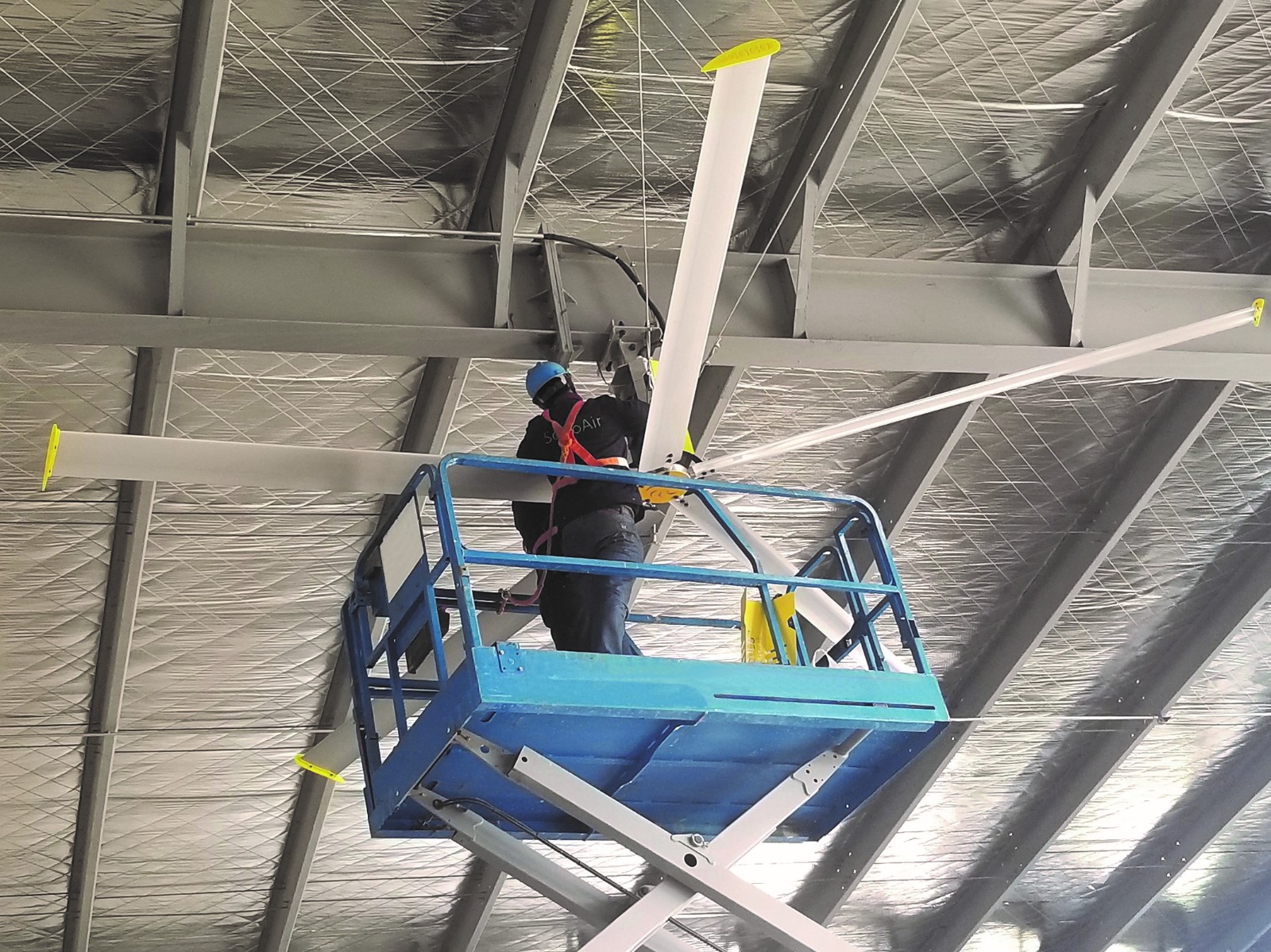

7、可适合混泥土、钢结构屋顶结构

Suitable for concrete and steel structure roof。

可选控制集成：

Optional control integration:

◆智能化控制箱

Intelligent control box

PLC系统控制，触摸屏。

PLC system control, touch screen;

可设置转速，减速比，定时模式，可提供基于WLAN技术的模块化诊断和创新交互方式，实现更优化的调试时间、信号反馈、无线远程智能检测和控制。

Can set rotating speed, speed reduction ratio and timing mode, can provide modular diagnosis and innovative interactive mode based on WLAN technology, and realize more optimized debugging time, signal feedback, wireless remote intelligent detection and control.

通讯协议: CANopen, EtherCAT, EtherNET/IP, Modbus, PROFIBUS, PROFINET

Communication protocols: CANopen, EtherCAT, EtherNET/IP, Modbus, PROFIBUS, PROFINET

◆普通控制箱

Common control box

设有启、停、运行、调速及信号指示

With start, stop, operation, speed regulation and signal indication.

◆简易控制开关

Simple control switch

设有电源，加、减速按钮

With power, acceleration and deceleration button

规格和参数Specifications and parameters

噪音：地面噪音测得小于60dB(A)

Noise: the ground noise is less than 60dB (A)
