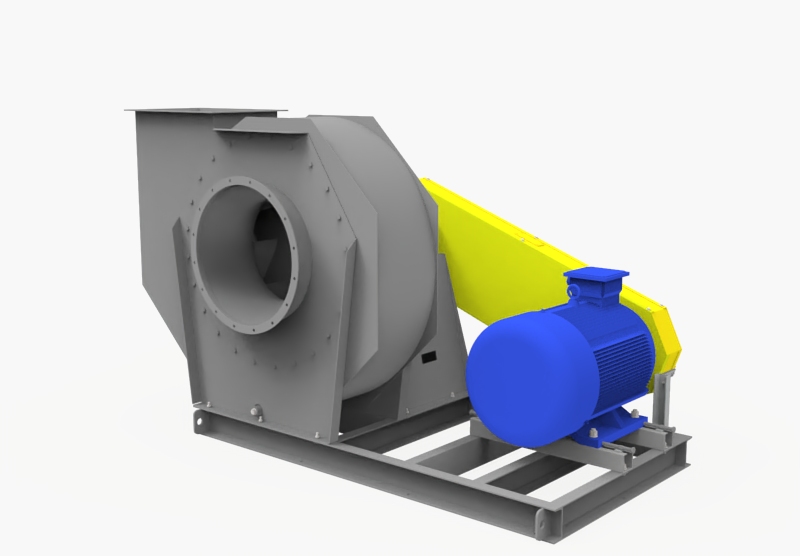

SCF-BL低压离心风机

SCF-BL（Low pressure centrifugal fan）

型号: SCF-BL (低压离心风机)

风量:2,000~230,000 m³/h

静压:350~3,300Pa

重量:40~2,000kg

功能:普通排风、工艺送排风以及防爆排风

特点:

1.采用后弯离心设计理念，反复经CFD流场模拟优化设计；

2.风机叶轮经过动态平衡试验，最高达到G2.5的平衡等级；

3.叶片等离子切割工艺，精密夹具定位，半自动焊接平台，焊接牢固美观，每个叶轮经时效去应力处理，运行平稳可靠；

4.传动形式直联，联轴器或皮带驱动；

5.风机表面经过打磨清理，除去焊渣、 毛刺、 锐边、 油污，经高温环氧树脂喷涂；

6.皮带轮为SP系列带轮，按照功率的150%选型，皮带轮、皮带配置有护罩；

7.蜗壳自带检修门，方便叶轮及蜗壳除垢；

8.蜗壳可选出风方向；

9.材质可选：CS/304/304L/316L等。

Model: SCF-BL（Low pressure centrifugal fan）

Volume:2,000~230,000 m³/h

Static pressure:350~ 3,300Pa

Weight:40~2,000kg

Applications:General ventilation, Industrial ventilation and Explosion proof exhaust

Characteristics:

1. Back curved blade is simulated and optimized repeatedly through CFD flow field, with features of non-overloading, high efficiency and stable flow;

2. Each impeller is dynamically and statically balanced to G2.5;

3. With plasma cutting technology, precise central positioning, semi-automatic welding platform, excellent welding, as well as inner stress diminishing treatment, each impeller runs smoothly and reliably;

4. Direct drive, coupling or belt drive are available;

5. The surface is treated with high temperature epoxy resin spray after grinding, removal of slag, burr, and dust pollution;

6. Belt pulley is SP belt wheel, selected according to over 150% of power, belt wheel and belt are equipped with protective cover;

7. The housing is self-equipped with access door for ease of clean and dirt removal;

8. The housing is available for different discharge directions;

9. Material optional: CS/304/304L/316L and so on.
