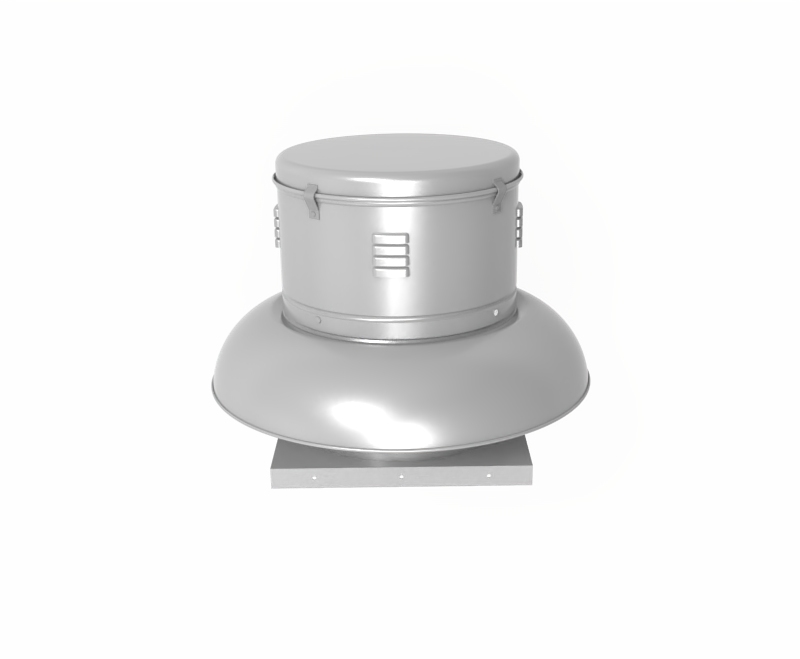

屋顶全铝制离心风机

RTF Aluminum Roof Centrifugal Exhaust Fan

型号:RTF（屋顶全铝制离心风机）

风量:500~50,000 m³/h

静压:100~900Pa

重量:35~200kg

功能: 屋顶普通排风、防爆排风以及消防排烟

特点:

1.采用全铝制离心叶轮设计理念，叶轮经CFD流场模拟，性能更稳定；

2.叶片采用模具冲压成型工艺，模具工装定位，保证尺寸和角度的准确；

3.铝制文丘里进风口，旋压一体成型， 有效保证弧形曲线，气流更顺畅，效率更高；

4.电机腔盖采用凸圆式设计理念，有效的增加强度，并减少雨雪或者灰尘的积累；

5.风帽采用弧线型设计，气流更顺畅，降低气流引起的噪音；

6.电机和驱动部件位于气流之外，不与污染物接触，有效降低气流中的污染物影响电机和驱动部件使用寿命；

7.全铝制结构，选择材质高于标准设计5倍的强度要求，有效减少屋顶承重，适合钢结构厂房；

8.材质可选防腐喷涂，耐中性盐雾腐蚀，广泛应用于沿海地区；

9.叶轮平衡等级达到G2.5,整机振动小，有效避免风机振动对屋顶的影响；

10.标配不锈钢螺栓及不锈钢防鸟网。

Model:RTF （Aluminum Roof Centrifugal Exhaust Fan ）

Volume:500~50,000 m³/h

Static pressure:100~900Pa

Weight:35~200kg

Applications:General exhaust, Explosion-proof exhaust and Fire exhaust

Characteristics:

1. With new design of concept, aluminum centrifugal impeller is simulated by the CFD flow field to offer more stable performance;

2. The die stamping process is adopted and the mold tooling is positioned to ensure the accuracy of blade size and angle;

3. Aluminum venturi effectively guarantee the arc curve, providing higher efficiency;

4. The motor chamber cover with convex type design, to effectively increase the strength,avoiding accumulation of dust or rain and snow;

5. Arc type hood increases the intensity, providing higher efficiency and lower noise;

6. The motor and driving parts are out of the air flow without air pollution, providing longer service life;

7. The whole aluminum structure，the material is 5 times higher than the standard in strength, can effectively reduce the load bearing of the roof. It is suitable for the steel structure workshop;

8. Anticorrosion coating is optional, resistant to neutral salt fog corrosion.It is widely used in coastal areas;

9. Wheel balance level up to G2.5 provides less vibration,effectively avoiding the effect of fan vibration on the roof;

10.Stainless steel bolts and stainless bird screen are standard.
