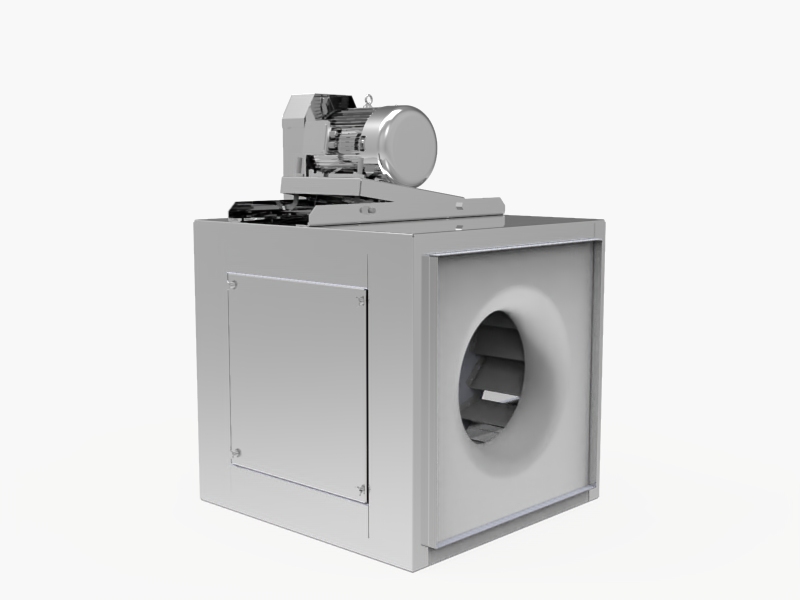

铝叶轮离心风机

ICF Aluminum Impeller Centrifugal Fan

型号:ICF(铝叶轮离心风机)

风量:500~50,000 m³/h

静压:100~1,600Pa

重量:35~200kg

功能:普通送排风、防爆排风以及消防排烟

特点:

1.采用全新铝制离心叶轮设计理念，叶轮经CFD流场模拟，传动惯量小，性能更稳定；

2.叶片采用模具冲压成型工艺，模具工装定位，保证尺寸和角度的准确；

3.铝制文丘里进风口，旋压成型，弧形曲线，气流更顺畅，效率更高；

4.叶轮平衡等级达G2.5，运行平稳；

5.箱式风机形式，进、出口法兰承插式，便于和风管的对接，多种出风方向，便于不同位置安装；

6.箱体采用镀铝锌钢材质，抗氧化能力更强，表面持久不褪色；

7.室外型螺栓均为不锈钢材质；

8.两侧自带检修门，拉铆螺母固定，可多次拆卸，维护方便,能承受较大风机内部的压力，密封性好，不易松动；

9.可带过滤段，适用于净化工况需求。

Model:ICF (Aluminum Impeller Centrifugal Fan)

Volume:500~50,000 m³/h

Static pressure:100~1,600Pa

Weight:35~200kg

Applications:General ventilation, Explosion-proof exhaust and Fire exhaust

Characteristics:

1. All aluminum centrifugal impeller is simulated by the CFD flow field, providing less inertia and more stable performance;

2. The die stamping process is adopted and the mold tooling is positioned to ensure the accuracy of blade size and angle;

3.Aluminum Venturi inlet is formed by “spun” technology, creating arc curve, making air flow smoother and more efficient;

4.Wheel balance level up to G2.5, run smoothly;

5.The cabinet type fan with flange on both inlet and outlet for ease of duct connection, creating many kinds of discharge, making different installation available;

6.The cabinet is made of aluminum plated steel, with a stronger antioxidant capacity and a durable surface;

7.Bolts for outdoors are made of stainless steel;

8.Access doors fixed with riveting nuts are available on both sides, making maintenance very easy, capable of withstanding large inner pressure;

9.The band filter section is available for application with purification requirement.
