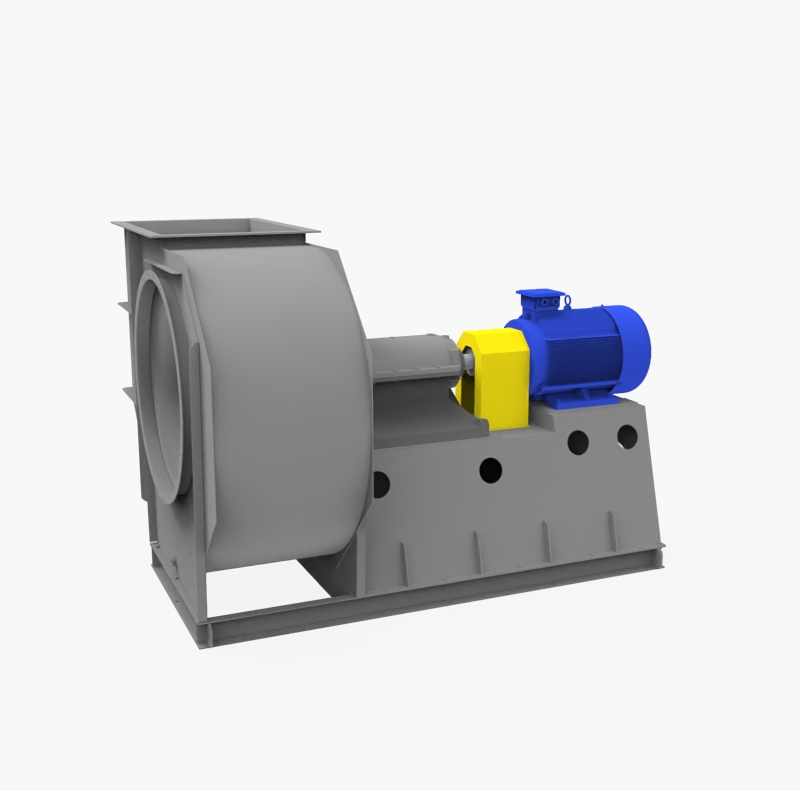

中压离心风机

SCF-BM Medium pressure centrifugal fan

型号: SCF-BM (中压离心风机)

风量可达:350~55,000 m³/h

静压可达:400~12,000Pa

重量:40~800kg

功能:普通排风、工艺送排风及防爆排风

特点:

1.采用后弯离心设计理念，反复经CFD流场模拟优化设计，不过载、效率高、气流稳定；

2.风机叶轮都经过动态平衡试验，达到G4.0的平衡等级；

3.叶片等离子切割工艺，精密夹具定位，半自动焊接平台，焊接牢固美观，每个叶轮经时效去应力处理， 运行平稳可靠；

4.传动形式直联，联轴器或皮带驱动；

5.风机表面经过打磨清理，除去焊渣、 毛刺、锐边、 油污，经高温环氧树脂喷涂；

6.风机轴应是通过精车调质处理的，其最大负载应大于风机最大运行速度的150%，轴应当加轴护罩。皮带轮为SP系列带轮，按照功率的150%选型，皮带轮、皮带配置有护罩；

7.蜗壳自带检修门，方便叶轮及蜗壳除垢；

8.蜗壳可选出风方向；

9.材质可选：CS/304/304L/316L等。

Model: SCF-BM（Medium pressure centrifugal fan）

Volume up to:350~55,000 m³/h

Static pressure up to:400~12,000Pa

Weight:40~800kg

Applications:General ventilation, Industrial ventilation and Explosion proof exhaust

Characteristics:

1. Back curved centrifugal blade is simulated and optimized repeatedly through CFD flow field, with features of non-overloading, high efficiency and stable flow;

2. Each impeller is dynamically and statically balanced to G4.0;

3. With plasma cutting technology, precise central positioning, semi-automatic welding platform, excellent welding ,as well asinner stress diminishing treatment, each impeller runs smoothly and reliably;

4. Direct drive, coupling or belt drive are available;

5. The surface is treated with high temperature epoxy resin spray after grinding, removal of slag, burr, and dust pollution;

6. The shaft should be tempered and polished with a maximum load more than 150% of the maximum speed of the fan, and the shaft should be covered with a shaft shield; Belt pulley is SP belt wheel, selected according to over 150% of power, belt wheel and belt are equipped with protective cover;

7. The housing is self-equipped with access door for ease of clean and dirt removal;

8. The housing is available for different discharge directions;

9. Material optional: CS/304/304L/316L and so on.
