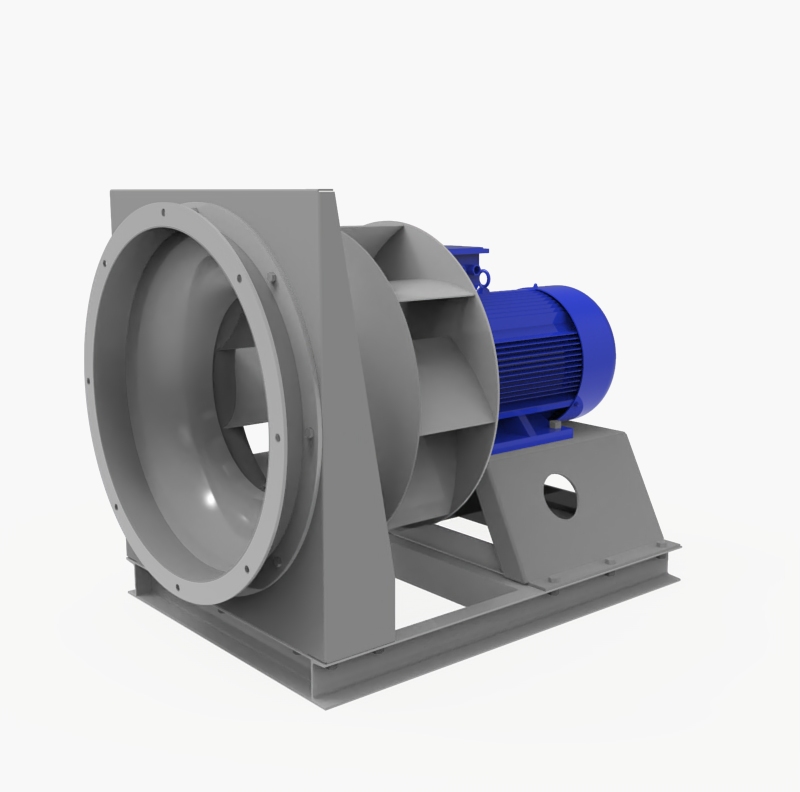

直联-嵌入式离心风机

SCF-PA

型号:SCF-PA(嵌入式离心风机)

风量:500~150,000 m³/h

静压:100~2,000Pa

重量:40~300kg

功能:普通排风、工艺送排风、防爆排风及高温送排风

特点：

1.采用后弯离心设计理念，反复经CFD流场模拟优化设计；

2.风机叶轮都经过动态平衡试验，达到G4.0的平衡等级；

3.等离子切割工艺，精密夹具定位，半自动焊接平台，焊接牢固美观，每个叶轮经失效去应力处理，运行平稳可靠；

4.传动形式为直联驱动；

5.风机表面经过打磨清理，除去焊渣、毛刺、锐边、 油污，经高温环氧树脂喷涂；

6.风机轴应是通过精车调质处理的，其最大负载应大于风机最大运行速度的150%，轴应当加轴护罩；

Model:SCF-PA  (Embedded centrifugal fan)

Volume:500~150,000 m³/h

Static pressure:100~2,000Pa

Weight:40~300kg

Applications:General exhaust, Industrial Ventilation, Explosion-proof exhaust and High temperature ventilation

Characteristics:

1. Back curved centrifugal blade is simulated and optimized repeatedly through CFD flow field, with features of non-overloading, high efficiency and stable flow;

2. Each impeller is dynamically and statically balanced to G4.0;

3. With plasma cutting technology, precise central positioning, semi-automatic welding platform, excellent welding ,as well as inner stress diminishing treatment, each impeller runs smoothly and reliably;

4. Direct drive;

5. The surface is treated with high temperature epoxy resin spray after grinding, removal of slag, burr, and dust pollution;

6. The shaft should be tempered and polished with a maximum load more than 150% of the maximum speed of the fan, and the shaft should be covered with a shaft shield;
