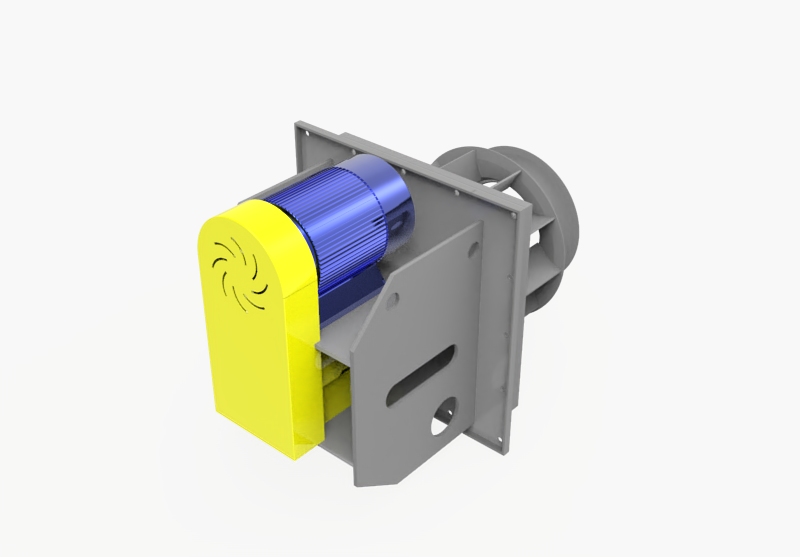

带联-嵌入式离心风机

SCF-PC  Embedded centrifugal fan

型号:SCF–PC(嵌入式离心风机)

风量:1,200~170,000 m³/h

静压:300~4,000Pa

重量:40-400kg

功能:普通排风、工艺送排风、防爆排风以及高温风机

特点：

1.采用离心设计理念，经CFD流场模拟优化设计；

2.每一台风机叶轮都经过动态平衡试验，达到G4.0的平衡等级；

3.叶片等离子切割工艺，精密夹具定位，半自动焊接平台，焊接牢固美观，每个叶轮经实效去应为处理，运行平稳可靠；

4.风机表面经过打磨清理，除去焊渣、 毛刺、 锐边、油污，经高温环氧树脂喷涂；

5.风机轴应是通过精车调质处理的，其最大负载应大于风机最大运行速度的150%，轴应当加轴护罩；

6.皮带轮为SP系列带轮，按照功率的150%选型，皮带轮、皮带配置有护罩；

Model:SCF-PC  (Embedded centrifugal fan)

Volume:1,200~170,000 m³/h

Static pressure:300~4,000Pa

Weight:40~1,000kg

Applications:General exhaust, Industrial Ventilation, Explosion-proof exhaust and High temperature ventilation

Characteristics:

1. Centrifugal blade is simulated and optimized repeatedly through CFD flow field;

2. Each impeller is dynamically and statically balanced to G2.5;

3. With plasma cutting technology, precise central positioning, semi-automatic welding platform, excellent welding, as well as inner stress diminishing treatment, each impeller runs smoothly and reliably;

4. Direct drive, coupling or belt drive are available;

5. The surface is treated with high temperature epoxy resin spray after grinding, removal of slag, burr, and dust pollution;

6. The shaft should be tempered and polished with a maximum load more than 150% of the maximum speed of the fan, and the shaft should be covered with a shaft shield;
