过滤机组

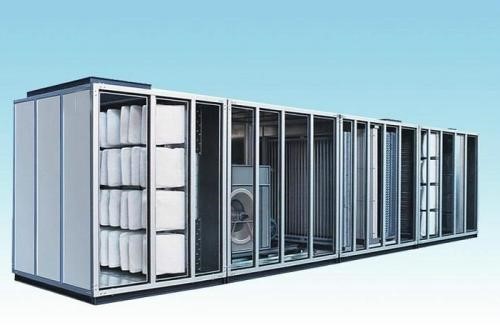

AH-FG Combined air unit (fresh air unit)

型号:AH-FG组合式空气机组（新风机组）

风量可达:150,000 m³/h

功能:高规格空间过滤送排风

特点：

1.空气净化效率最高达到95%；

2.铝合金框架，25mmPU发泡夹心板，保证良好的隔音和保温效果；

3.过滤器独立的密封结构，每块过滤器一个单独体，便于快速更换过滤器；

4.过滤分类：G4，F5，F6，F7，F8,H11,H14以及活性炭过滤器，段体可任意组合；

5.配置密封型检修门、旋转式门铰链，便于进出维护；

6.内部风机选择高效率风机，叶轮平衡等级高达G2.5，配置防剪切弹簧座装减震器及软接头；

7.配置电机匹配设计合理，电机防护等级IP55；

8.标配指针式压差表，不锈钢采压头；

9.整体漏风量小于3%@1000pa；

10.可选配置：入口调节阀、入口防雨罩、就地控制箱、远程控制箱.

Model:AH-FG combined air unit (fresh air unit)

The air volume is up to:150,000 m³/h

Function:Available for purification air supply

Characteristics:

1. The highest efficiency of air purification reaches 95%;

2. Aluminum alloy frame combined with 25mmPU foam sandwich plate ensures good noise insulation and heat preservation;

3. Independent seal structure for each filter, available for easy replacement;

4. Filter classification: G4, F5, F6, F7, F8, H11, H14, and active carbon filter, the segment can be combined arbitrarily;

5. Configuration sealed access door, rotary door hinge, easy for maintenance and replacement;

6. High efficiency fan is adopted, the wheel balance level is up to G2.5, and anti-shear vibration isolator and soft connector is equipped;

7. The motor selected is reasonable with protection grade IP55;

8. Pointer differential pressure meter and stainless steel press head is standard;

9.The total of air leakage is less than 3%@1000pa;

10. Optional configuration:Inlet damper, inlet weather hood, local control box, remote control box
